Ultra-large capacity digital micromirror spatial light modulator DMD-1K055-02-16HC

Product Features:

1.Adopt TI advanced optical control chip

2. Designed for industrial and scientific research fields

3. Support precise internal and external synchronization signals

4. Able to work closely with the camera

    Product Parameters

    Model Number

    DMD-1K055-02-16HC

    Specificities

    large capacity

    Resolution

    1024×768

    Pixel Size

    10.8μm

    Image Size

    0.55"

    Depth

    1-16 bit adjustable

    Contrast Ratio

    >2000:1

    Refresh Frequency

    (real time transmission)

    8 Bit

    /

    Input-output synchronization

    Support

    Refresh Frequency

    (thumbnail sketch)

    16 Bit

    3Hz (5us minimum)

    Spectral Range

    400nm-700nm

    8 Bit

    657.56Hz (5us minimum)

    Reflectivity

    >78.5%

    6 Bit

    /

    Damage Threshold

    10W/cm²

    1 Bit

    27995Hz (5us interval)

    RAM/Flash

    RAM 8GB (solid state drive capacity 1T, 2T, 4T optional)

    Real-time transmission video interface

    NO

    PC Interface

    Gigabit Ethernet interface (or USB 3.0)

    Number Of Maps Stored

    20.34 million copies (1-bit, 2TB)

    40.69 million copies (1-bit, 4TB)

    81.38 million sheets (1-bit, 8TB)

    Angle Of Divergence

    ±12°

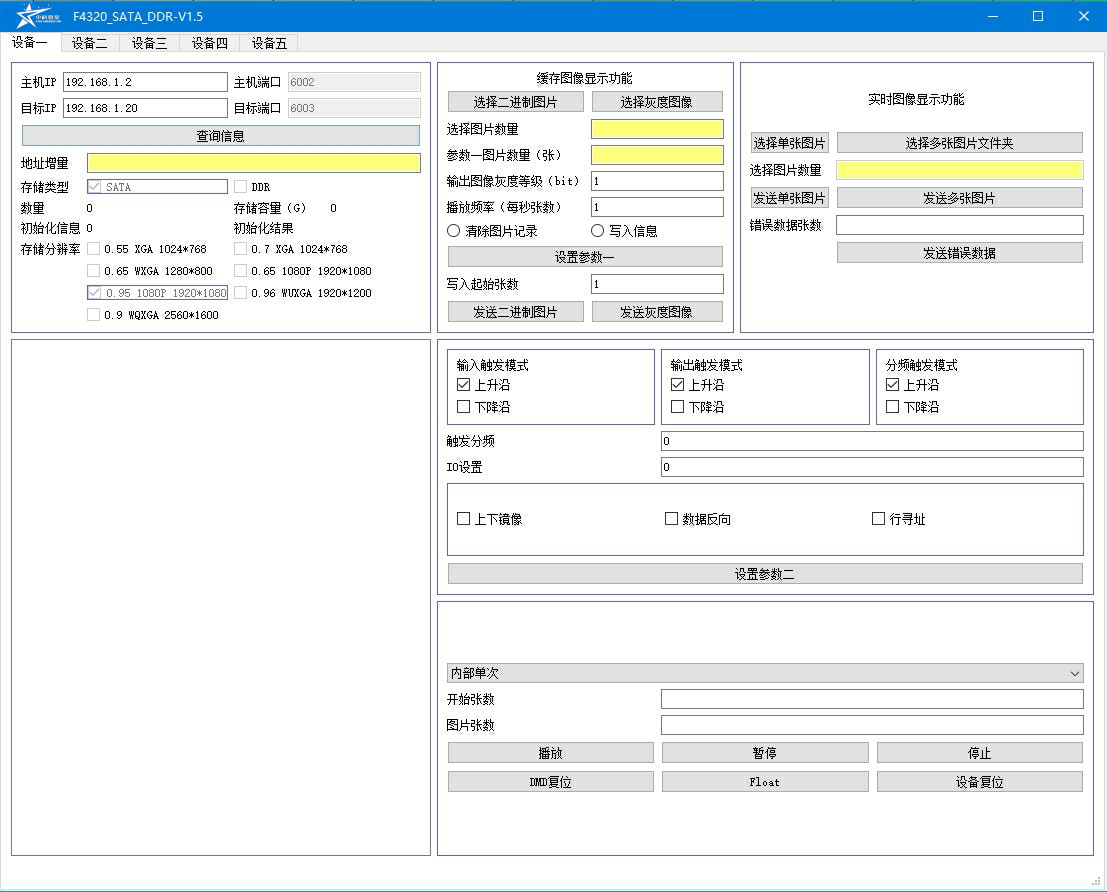

    Control  Software

    HC_DMD_Control

    Supporting software

    1

    1. High-speed display, and the output image gray level can be set flexibly, the range is 1-16 (bit). 2.

    2. Customize the cycle of image cycle display, you can directly set the frequency of playback.

    3. When cyclic display, you can “stop” the playback and change the previously set parameters such as display period and playback order.

    4. Support internal and external cycle playback and single cycle playback, support internal and external synchronization trigger.

    5. Adopts Gigabit Ethernet interface for communication, and USB3.0 network card can also be used for work, easy to use and flexible.

    6. Support high-capacity image storage and high-speed synchronized trigger playback.

    7. Supports multiple device networking and synchronous work.

    Areas of application

    • Maskless lithography
    • laser direct imaging
    • holographic imaging
    •  light field modulation
    • machine vision
    • vision guidance
    • computational imaging
    • spectral analysis
    •  biomicrography
    • circuit board exposure
    •
