Ultra High Definition Digital Micromirror Spatial Light Modulator DMD-2K095-02-8RT

Product Features:

1.Adopt TI advanced optical control chip

2.Designed for industrial and scientific research fields

3.Support precise internal and external synchronization signals

4.Able to work closely with the camera

product details

Product Parameters

Model Number	DMD-2K095-02-8RT	Specificities		real time transmission
Resolution	1920 x 1080	Pixel Size		10.8μm
Image Size	0.95"	Depth		Deposit map: 1-12 bit adjustable Real-time: (1, 2, 4, 8 bits adjustable)
Contrast Ratio	＞2000：1	Refresh Frequency (real time transmission)	8 Bit	120Hz
Input-output synchronization	Support	Refresh Frequency (thumbnail sketch)	16 Bit	/
Spectral Range	400nm-700nm		8 Bit	288Hz
Reflectivity	＞78.5%		6 Bit	1000Hz
Damage Threshold	10W/cm²		1 Bit	17857Hz
RAM/Flash	8GB（DDR4）/32GB（emmc flash)	Real-time transmission video interface		HDMI
PC Interface	USB3.0	Number Of Maps Stored		23130 (volatile) + 107941 (non-volatile) (1 digit) 2891 (volatile) + 13492 (non-volatile) (8 bits)

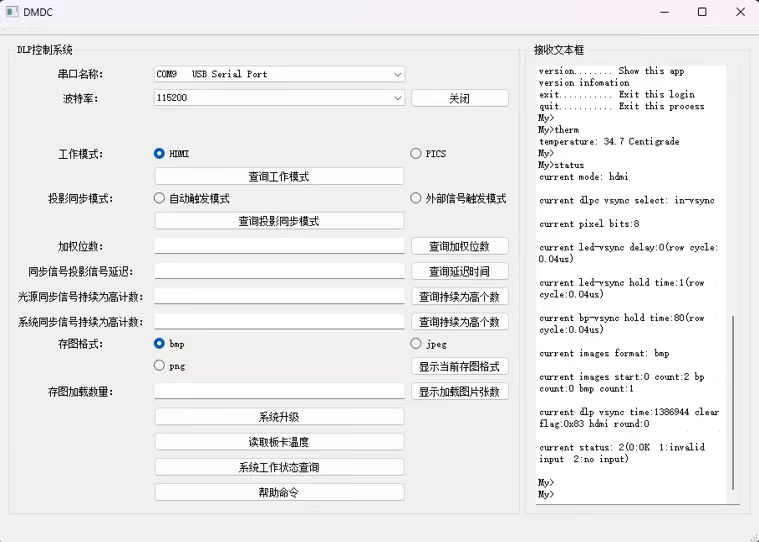

Angle Of Divergence	±12°	Control Software		DMD GUI

1. Picture support disk-based management, or management in the upper computer software interface.

2. Support system feedback, equipment information such as temperature feedback.

3. Support online update program.

4. Support real-time and save picture mode switching.

5. Support input synchronization setting in real-time mode, i.e. switching external trigger or internal trigger (automatic trigger).
