Ultra High Definition Digital Micromirror Spatial Light Modulator DMD-2K067-02-8RT

Product Features:

1.Adopt TI advanced optical control chip

2.Designed for industrial and scientific research fields

3.Support precise internal and external synchronization signals

4.Able to work closely with the camera

product details

Product Parameters

Model Number	DMD-2K067-02-8RT	Specificities		real time transmission
Resolution	2716x1600	Pixel Size		5.4μm
Image Size	0.67"	Depth		1-8 bit adjustable
Contrast Ratio	＞2000：1	Refresh Frequency (real time transmission)	8 Bit	30Hz
Input-output synchronization	Support	Refresh Frequency (thumbnail sketch)	16 Bit	/
Spectral Range	420nm-700nm		8 Bit	1190Hz
Reflectivity	＞71.8%		6 Bit	/
Damage Threshold	10W/cm²		1 Bit	9523Hz
RAM/Flash	128MB	Real-time transmission video interface		HDMI DP
PC Interface	USB1.1	Number Of Maps Stored		/
Angle Of Divergence	±17.5°	Control Software		TI GUI

1、Support full HD HDMI or DP (DisplayPort) interface;

2、1-8bit gray level can be set;

3、Support input and output synchronization trigger;

4、Support for pure laser and high-brightness LED and other light sources

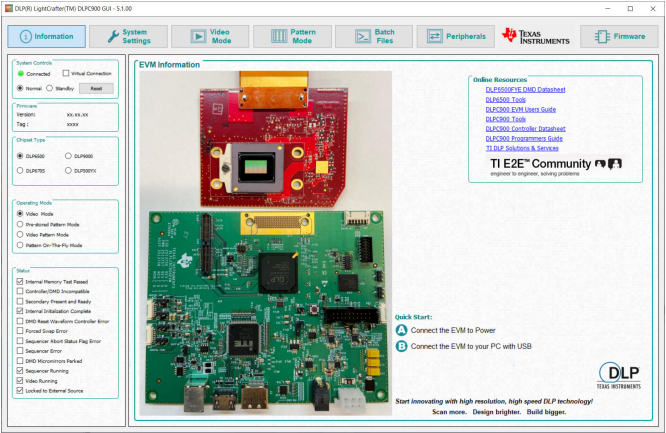

5、The control software includes “Video Mode” and “Pattern Mode” switching control function;
