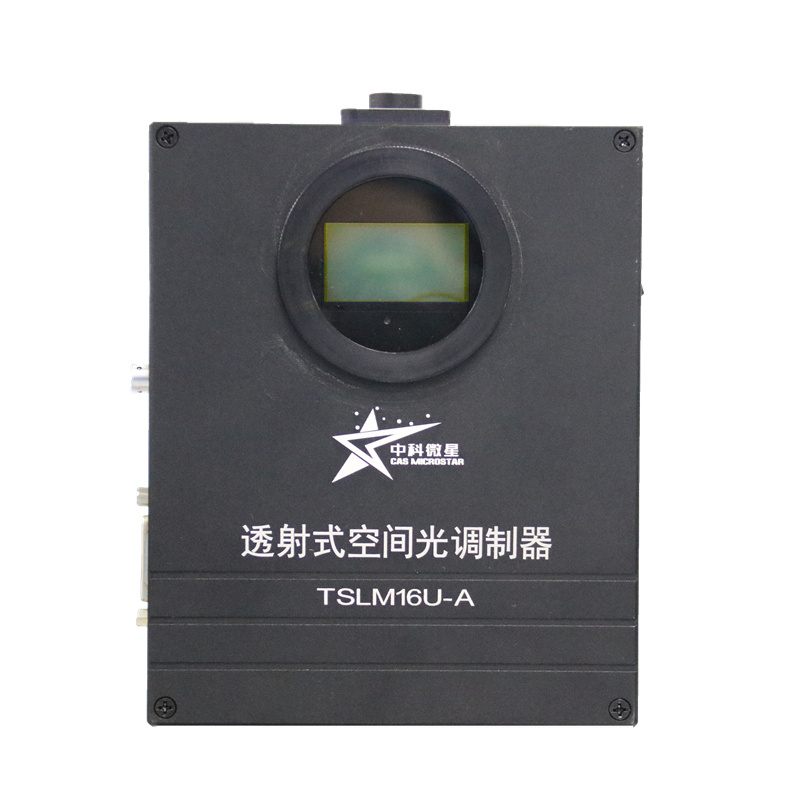

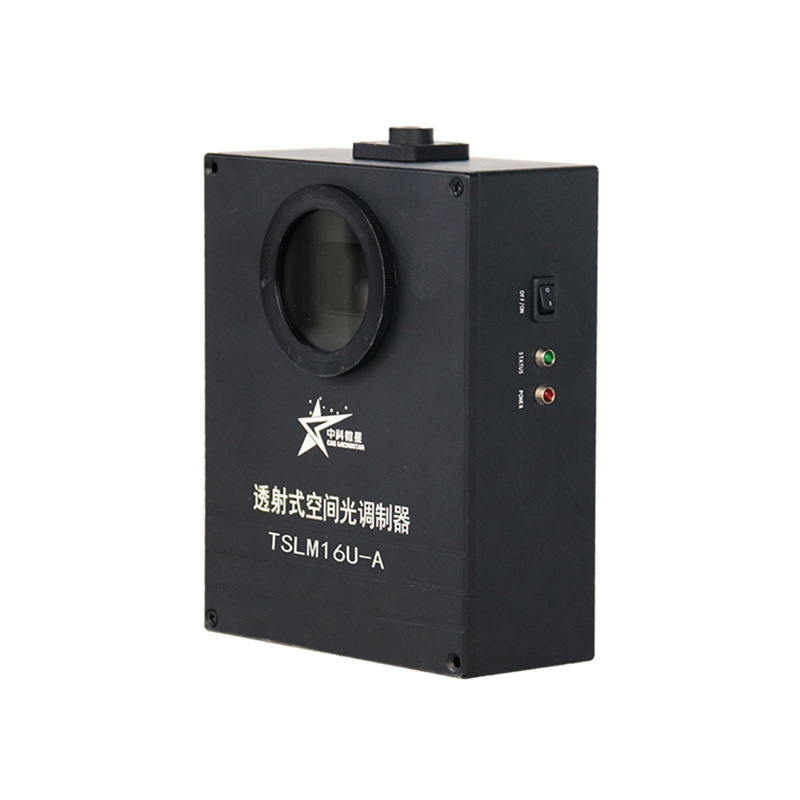

Transmissive Amplitude Spatial Light Modulator TSLM16U-A

Functional Features：

1、Provide LCD light valve splicing solution

2、Integrated and external dumping structures are available to meet various installation requirements.

3、Small structure for easy system integration.

product details

Product Parameters

Model Number	TSLM16U-A	Modulation Type	Amplitude type
Liquid Crystal Type	Transmissive	Grayscale Level	8 bit, 256 step
Liquid Crystal Mode	TN	Driving Method	Analog
Resolution	1920×1080	Pixel Size	19μm
Effective Area	1.6" 36.5mm×20.5mm	Contrast Ratio	40:1@808nm
Aperture ratio	62.2%	Optical Utilization	2%@635nm
Linearity	85%	Response Time	≤16.7ms
Refresh Frequency	60 Hz	Spectral Range	420nm-1200nm

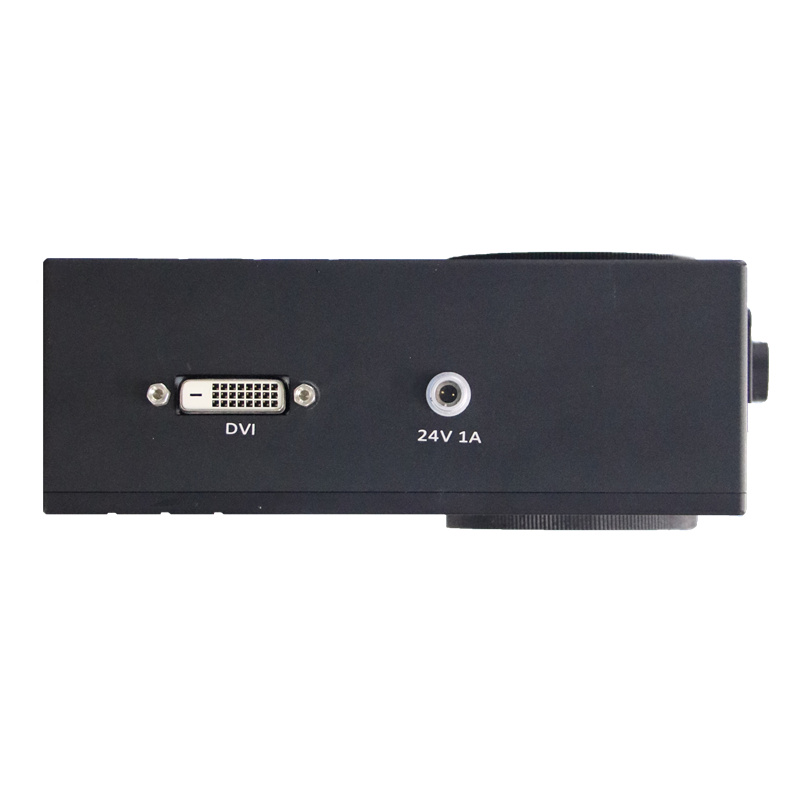

damage threshold	2W/cm²	Data Interface	DVI
Power Input	24V 1A	Gamma Correction	Not support

Supporting software

1. Based on C/C++ development, running environment: Windows7 Sp1 and above, 32bits/64bits; adapted to our various types of spatial light modulator products.

2. Horizontal flip, vertical flip, grayscale flip, gamma correction, face correction and other image transformation functions support Chinese and English language switching.

3. Integrate a variety of specific light field control functions: such as diffractive light field, non-diffractive light field, structural light field.

4. Integrate more than twenty kinds of experimental projects, 35 Zernike polynomials, and support the superposition between phase diagrams.

5. Real-time online adjustment and control of all kinds of light field parameters.

6. Quickly correct the wavefront aberration according to the actual demand.

7. It can be extended independently and dynamically displayed in external input mode.

8. Autonomous selection of playback mode to realize high-speed refresh playback.

9. Green running mode without installation, directly unzip and run.
