Reflective phase type spatial light modulator FSLM-2K55-P

Functional Features:

1.Self-encapsulated liquid crystal light valve, low maintenance costs and guaranteed delivery;

2.Measured data for more reliable performance;

3.Provide splicing solution for LCD light valves;

4.Supports 532 nm and 635 nm surface compensation;

5.One-piece and external dumping structures are available to fulfill various installation requirements.

    Product Parameters

    Model Number

    FSLM-2K55-P

    Modulation Type

    Phase Type

    LCOS type

    Reflection

    Grayscale Level

    8 bit, 256 step

    Resolution

    1920×1080

    Image Size

    6.4μm

    Effective area

    0.55" 12.29mm×6.91mm

    Modulation depth

    2π@532nm

    Fill factor

    94%

    Optical Utilization

    75%@532nm

    Gamma calibration

    Not Support

    Phase calibration

    Not Support

    Power input

    12V 2A

    Response time

    ≤33ms

    Refresh frequency

    60Hz

    Spectral range

    532nm

    Damage Threshold

    ≤2W/cm2(no water cooling)

    ≤20W/cm2(water cooling)

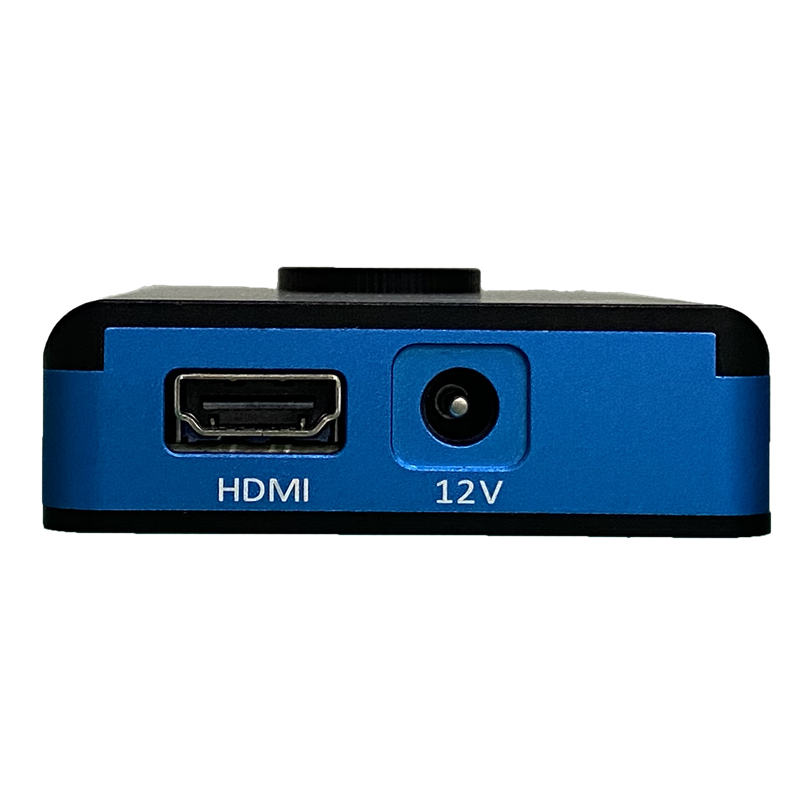

    Data Interface

    HDMI

    Supporting software

    1. Based on C/C++ development, running environment: Windows7 Sp1 and above, 32bits/64bits; adapted to our various types of spatial light modulator products.

    2. Horizontal flip, vertical flip, grayscale flip, gamma correction, face correction and other image transformation functions support Chinese and English language switching.

    3. Integrate a variety of specific light field control functions: such as diffractive light field, non-diffractive light field, structural light field.

    4. Integrate more than twenty kinds of experimental projects, 35 Zernike polynomials, and support the superposition between phase diagrams.

    5. Real-time online adjustment and control of all kinds of light field parameters.

    6. Quickly correct the wavefront aberration according to the actual demand.

    7. It can be extended independently and dynamically displayed in external input mode.

    8. Autonomous selection of playback mode to realize high-speed refresh playback.

    9. Green running mode without installation, directly unzip and run.

    spatial light modulatordfn

    Areas of application

    application (1)hv7
    application (2)4o0
    application (3)eqa
    application (4)fql
    • Holographic tweezers
    • Optical communication
    • Optical storage
    • Biomedical imaging
    • Atmospheric turbulence simulation
    • Adaptive Optics
    • Laser processing
    • Fluorescence microscopy
    • Automotive HUD
    • Super-resolution microscopy
    • Micromanipulation
    • Teaching instrument
    • Beam shaper
    • Liquid Crystal Phased Array
    • Wavelength selector switch
